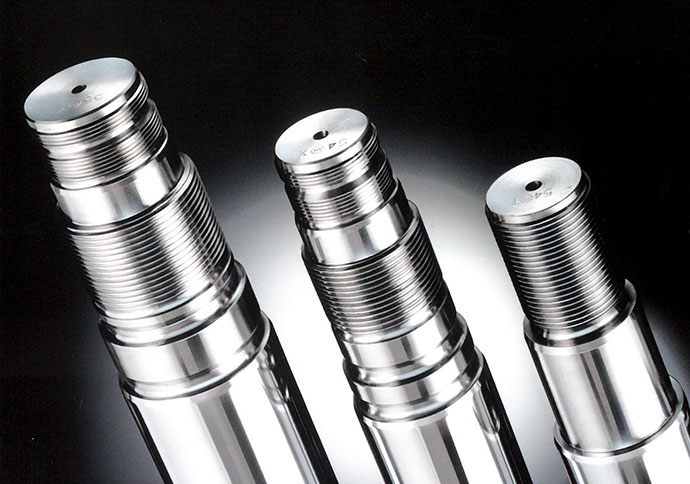

Machined Shafts

Machined Shafts

Precision shafts, which are used primarily for hydraulic components and civil engineering and building equipment parts, are machined with high precision. Machined shafts are produced by the latest machining facilities. After applying induction hardening and hard chromium plating treatment, they are used in industry.

Major items

Cold finished steel bars

We can make proposals in accordance with customer demand. Please feel free to contact us for consultation.

Plating shafts

Steel grade S45C, S45CQT, KNR75, SCM435 and QT (carbon steel, heat-treated steel, non-heat treated steel, chromium-molybdenum steel)
* Corresponding to JIS G 4051, G 4053, and soon.
Dimensions 8 to 100 x 3,000 L (Basic length: 3,000 L)

Machined shafts

Lathe machining

Machining diameter 25mm to 230mm
Machining length Approx. 6,000 L

Plating

Machining diameter 8mm to 200mm
Machining length Approx. 5,000 L

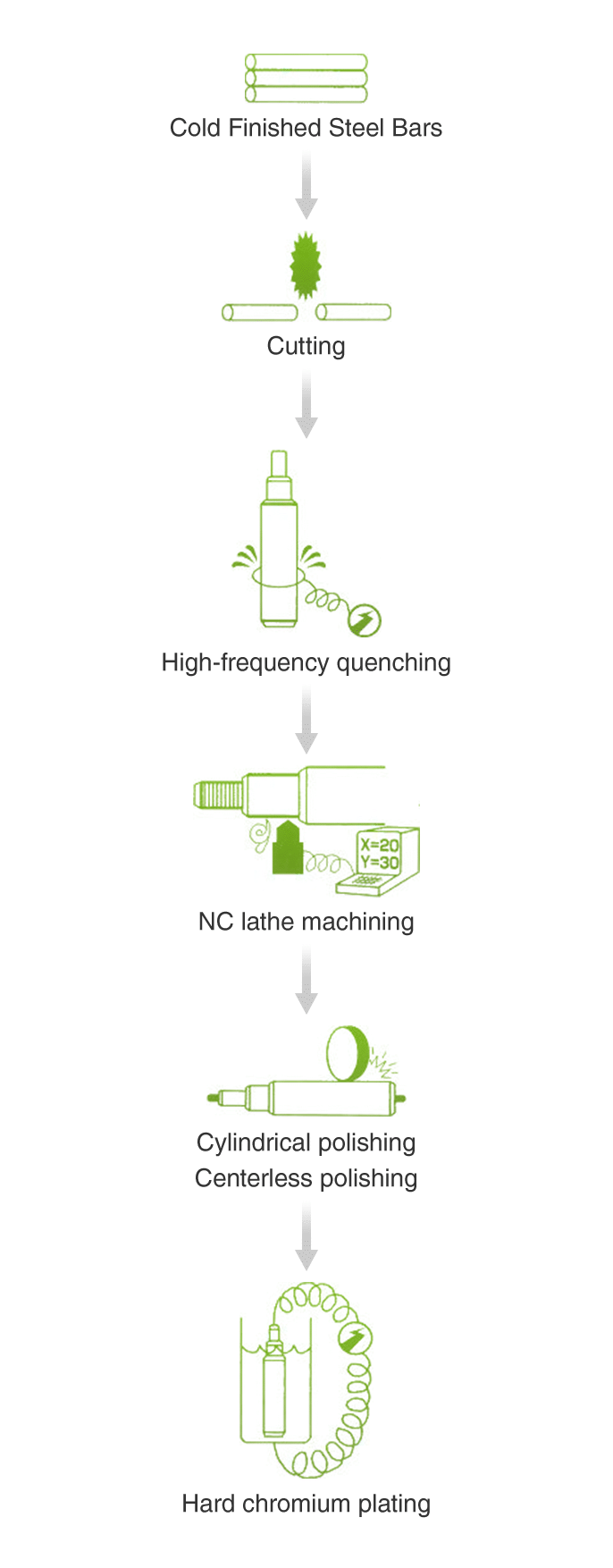

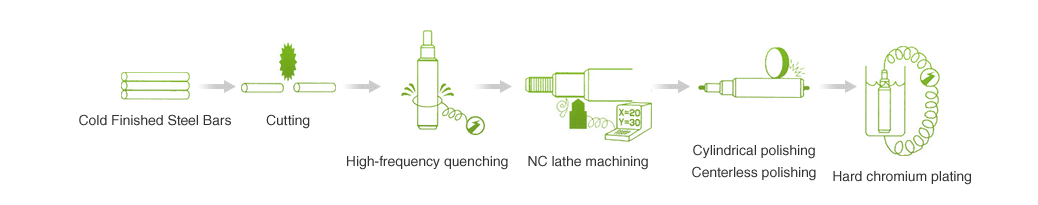

Manufacturing process

Manufacturing process Manufacturing process
